For the safe, precise and reliable analysis of carbon (C), sulfur (S) and hydrogen (H) in predominantly organic matrices such as soils, waste, wood, oil, coal and coke, ELTRA offers the elemental analyzers ELEMENTRAC CHS-r with IR detection.
The CHS-r with up to 3 infrared cells is designed for carbon, sulfur and hydrogen measurement over a very wide concentration range. It uses a horizontal resistance furnace with ceramic tube, which operates in a range from 600 °C to 1550 °C.
The CHS-r combustion analyzer meets or exceeds the requirements of all common ASTM, DIN, EN or ISO standards for elemental analysis.

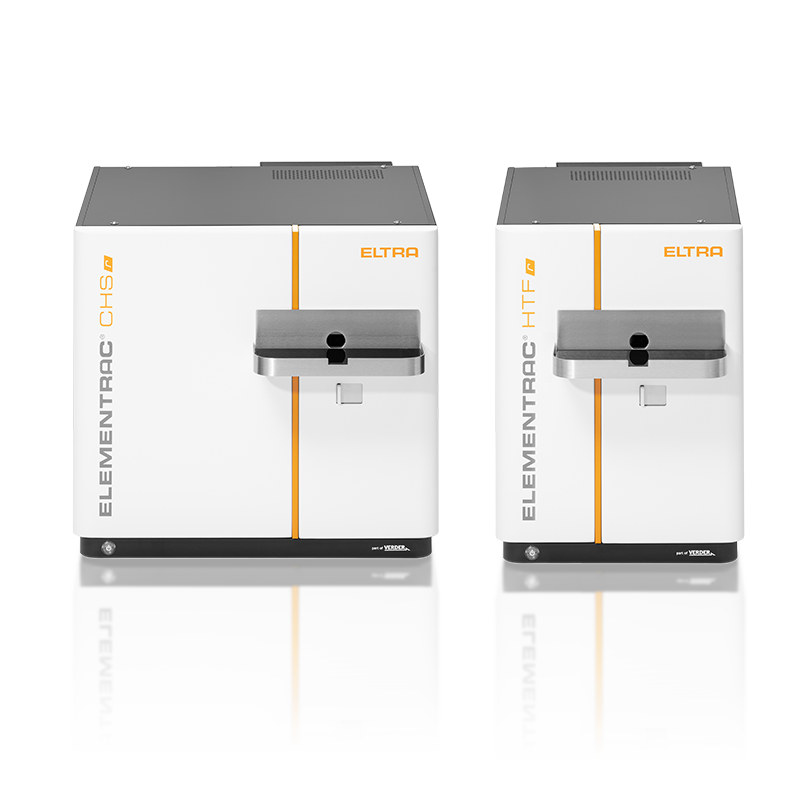

Carbon / Sulfur Analyzer ELEMENTRAC CHS-r
- Fast, simultaneous measurement of carbon, sulfur and hydrogen
- High sample weight possible
- Optimized (low blank) sample port
- IR path made of solid gold for extended lifetime
- Wide measuring range from 20 ppm to 100%
Carbon / Sulfur Analyzer ELEMENTRAC CHS-r Operation and Analysis Process
Step 1: Logging the sample into the ELEMENTS software
Step 2: Weighing and adding of accelerators
Volumes of 50 mg to 500 mg are typical for analysis of carbon, hydrogen and sulfur. The sample is directly applied to a carrier (ceramic or Inconel boat) and analyzed without addition of accelerators.

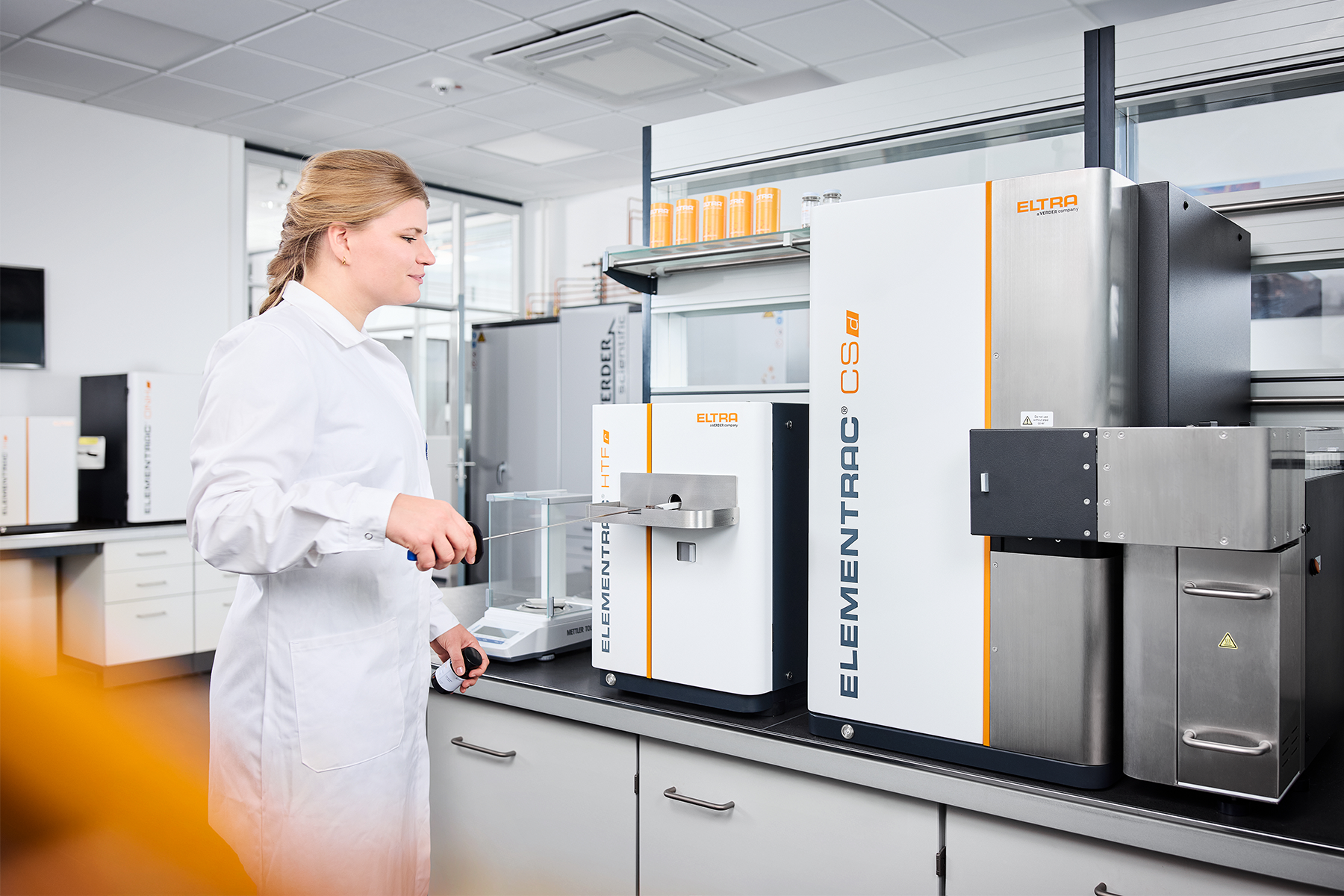

Step 3: Analysis
The sample is placed in front of the furnace opening and the measurement is started in the software. Subsequently, the shutter opens, and the material can be introduced into the hot furnace. At the same time, the ELEMENTS software continuously records measured values during combustion. Closing the furnace during the measurement is optional and can improve reproducibility.
Step 4: Data output and export
60 to 240 seconds after the analysis has started, the measured carbon, hydrogen and sulfur concentrations are available for export as a report or via LIMS. Depending on the selected configuration, carbon, sulfur and hydrogen values are available for the individual sample.
Carbon / Sulfur Analyzer ELEMENTRAC CHS-r Solutions & Options in Detail
The ELEMENTRAC CHS-r analyzer comes with various solutions for reliable, and precise carbon, hydrogen and sulfur analysis.

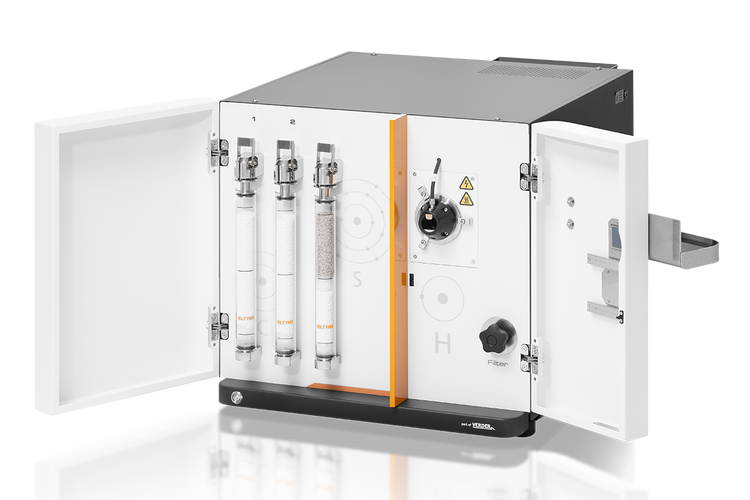

Included: Two Anhydrone Columns
For reliable analysis of carbon and sulfur, the combustion gases must be freed from water vapor prior to IR detection. The CHS-r elemental analyzer has two drying columns filled with magnesium perchlorate to reliably prevent absorption effects in large sample volumes. In the case of TOC analyses, a chemical tube can also be used as a halogen trap to reliably absorb acid residues and halogens.
Included: Low blank sample port
The ELEMENTRAC CS-r and CHS-r analyzer series ensures safe and precise elemental analysis even of samples with low carbon content in the resistance furnace. Due to the optimized geometry of the sample port with reduced diameter, as well as an oxygen purge at the sample inlet, the CO2 blank value of the atmosphere during sample introduction is drastically reduced, thus enabling reliable carbon analysis in the low measuring range.
Option: Second Furnace (ELTRA Dual Furnace Concept)

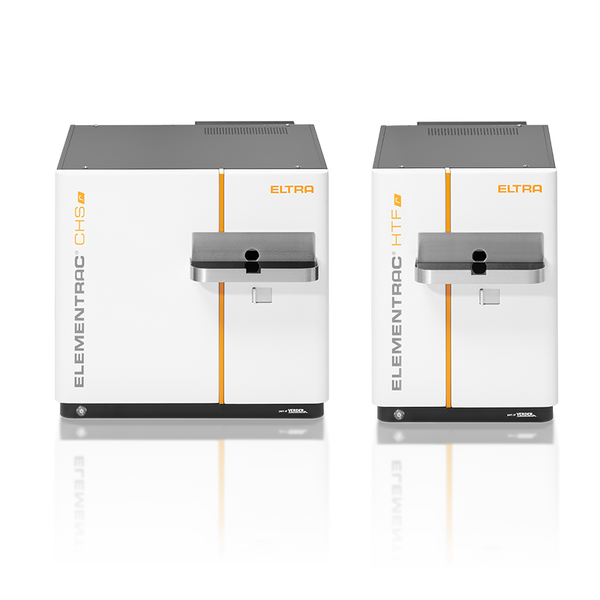

The CHS-r elemental analyzer can be connected in any configuration to an additional furnace without detectors. This principle, known from the ELEMENTRAC CS-d, allows fast fractionated analysis by applying different temperatures and provides safety for high sample throughput.
Option: Monitor Holder
To make the most of laboratory space, the ELEMENTRAC CHS-r analyzer offers various operating options:
- External monitor and keyboard
- Monitor holder, wireless keyboard
- Operation via touchscreen
Option: TIC Module
Depending on the sample, carbon can also be present in the two different fractions TOC (Total Organic Carbon) or TIC (Total Inorganic Carbon). The CHS-r elemental analyzer can be combined with ELTRA's TIC module to determine the TIC content via acidification. This combination enables reliable, direct TIC analysis in soils, building materials and other products in compliance with DIN EN 15936.
IoT - Internet of things The platform for remote access to your devices
- Real-time Monitoring: Gain insight into the status of your machines at any time thanks to immediate access to important data.
- Live Notifications: Stay up to date on the status of your devices with instant notifications.
- Effortless Backup: Whether you need to back up a single device or an entire fleet, back up your data effortlessly and minimize downtime.
- Automatic Software Updates: Verder Scientific IoT keeps your device software up to date, optimizing performance and reliability.
- Access to Analyses Data: ELTRA analyzers offer remote access to analysis data. This allows you to conveniently access important data while on the move.
- Autoloader Efficiency: Get the most out of remote analysis preparation with our autoloader feature, which ensures uninterrupted operation and increased productivity for all instruments equipped with it.
Experience the power of the Verder Scientific IoT platform today and unlock the full potential of your ELTRA analyzers!
Carbon / Sulfur AnalyzerELEMENTRAC CHS-r ELEMENTS Software
The comprehensive Windows-based ELEMENTS software is an essential part of all ELEMENTRAC generation elemental analyzers.
A central window (analysis and results) is the starting point from which all functionalities required for the daily routine are easily accessible. From here it is possible to group and export analyzed samples, or register and analyze new ones. The user may call up various subordinate functionalities like application settings, calibration, diagnosis, or status.
Carbon / Sulfur AnalyzerELEMENTRAC CHS-r Typical Sample Materials
biomass, building materials, coal, coke,fuels, oil, ores, plant materials, plastics, rubber, soil, soot, tobacco, waste...
Carbon / Sulfur AnalyzerELEMENTRAC CHS-r Functional Principle
In the elemental analyzer CHS-r the sample is burnt in an oxygen atmosphere at temperatures up to 1,550 °C. The furnace temperature can be freely selected in steps of 1 °C. The combustion gasses (CO2, H2O, SO2) coming from the furnace and first pass through a dust filter and then into the heated H2O infrared cell. After the water vapor is chemically absorbed, the dried CO2 and SO2 gas is detected in the additional infrared cells. Depending on the configuration, it is possible to combine up to three infrared cells with different sensitivities.
Carbon / Sulfur Analyzer ELEMENTRAC CHS-r Technical Data
| Measured elements | carbon, hydrogen, sulfur |
|---|---|
| Samples | organic |
| Furnace alignment | horizontal (resistance furnace) |
| Sample carrier | ceramic boats |
| Field of application | agriculture, biology, chemistry / plastics, coal / power plant, construction materials, environment / recycling, medicine / pharmaceuticals |
| Furnace | resistance furnace (ceramic tube), adjustable up to 1550 °C (steps of 1 °C) |
| Detection method | solid state infrared absorption |
| Number of IR cells | 1 - 3 |
| Material of IR path | gold |
| Typical analysis time | 60 - 180 s |
| Chemicals required | magnesium perchlorate, sodium hydroxide |
| Gas required | oxygen 99.5 % pure (2 - 4 bar / 30 - 60 psi) |
| Power requirements | 230 V, 50/60 Hz//max. heat up current 2000 W |
| Dimensions (W x H x D) | 58 x 52 x 75 cm |
| Weight | ~ 77 kg |
| Required equipment | PC, monitor, balance (resolution 0.0001g) |
| Optional accessories | TIC module |
