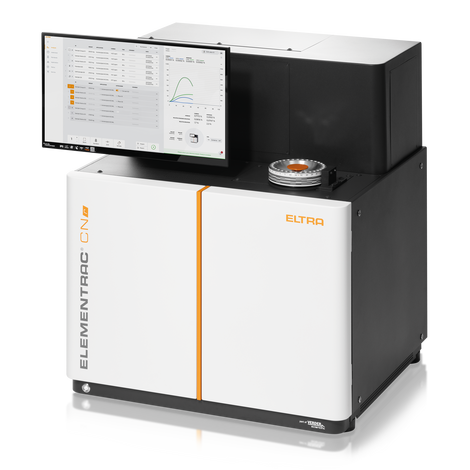

The ELEMENTRAC CN-r is the perfect solution for high-throughput laboratories needing fast and reliable nitrogen, protein, and carbon determination. This analysis method, known as Dumas analysis or the Dumas method, is a proven alternative to the traditional Kjeldahl method for determining total nitrogen and protein by combustion of the sample.
State-of-the-art hardware and an integrated PC with touchscreen allow the operator to monitor the process and control all parameters. The compact design of the ELEMENTRAC CN-r saves laboratory space. The use of non-aggressive chemicals ensures higher work safety compared to the Kjeldahl method.
Typical samples for the Dumas combustion analyzers are natural products of various compositions. The ELEMENTRAC CN-r ensures complete combustion analysis of all samples thanks to the use of a pure oxygen atmosphere during the process. Combined with the highly efficient, chromium-free catalyst, all components are fully oxidized. This prevents the formation of soot and liquid tin, contributing to the stability and accuracy of the results. Furthermore, method optimization is greatly simplified by the excess oxygen during combustion in the ELEMENTRAC CN-r.

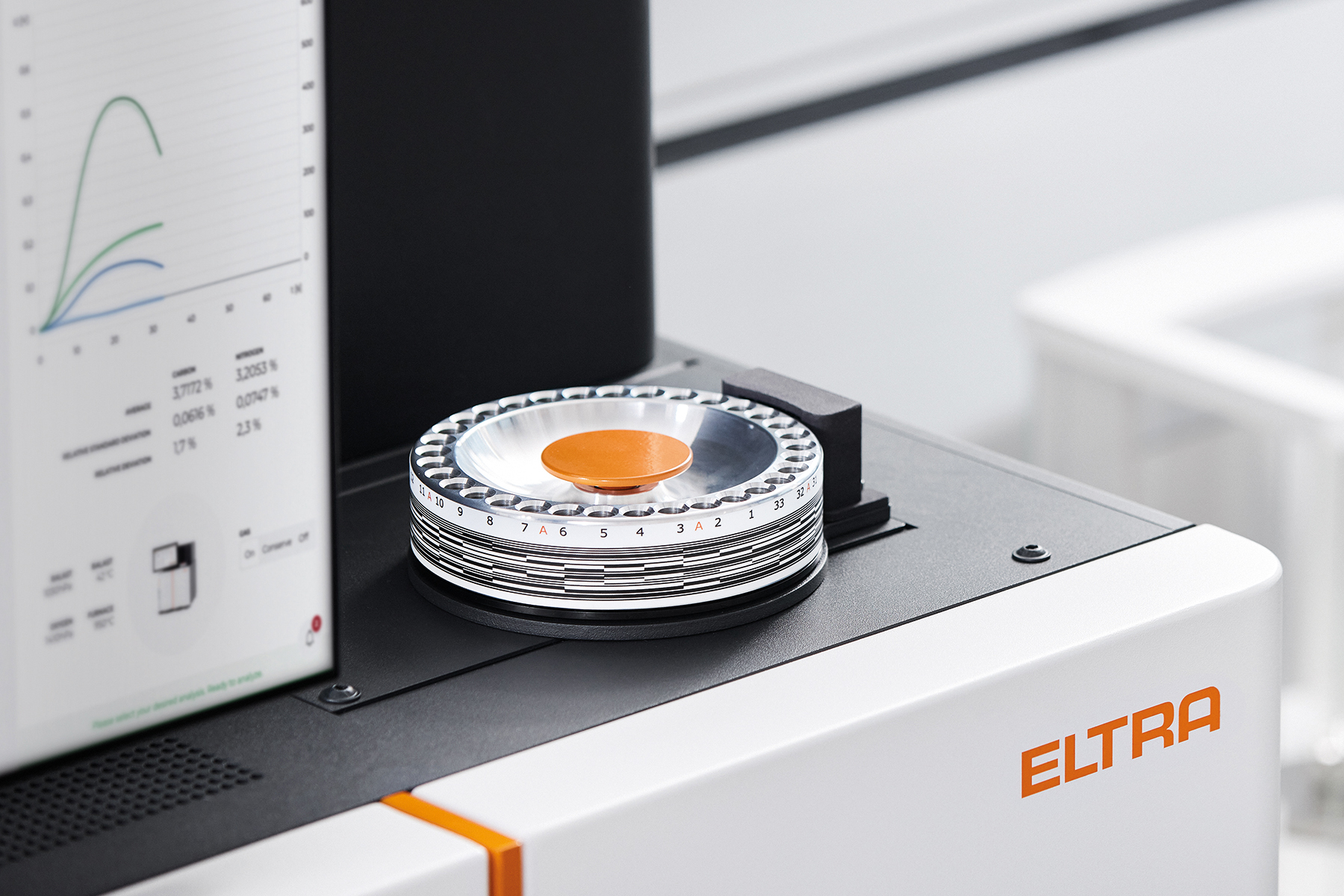

The innovative autosampler of the ELEMENTRAC CN-r ensures clear sample identification, preventing mix-ups even in a busy laboratory environment and making it easier to handle a large number of samples.
Carbon / Nitrogen / Protein Analyzer Robust and Reliable Determination of Carbon, Nitrogen, and Proteins
- Reliable results in less than 3 minutes and at low cost per sample
- Automated nitrogen / protein and carbon determination using the Dumas method
- Ergonomic design with integrated PC and tiltable touchscreen
- Modern, cost-effective, time- and space-saving alternative to traditional Kjeldahl systems
- Optimized for high throughput, reliability, and cost efficiency
- Available in two configurations: carbon and nitrogen / protein analyzer, or nitrogen / protein analyzer only
Carbon / Nitrogen / Protein Analyzer ELEMENTRAC CN-r Operation and Analysis Process

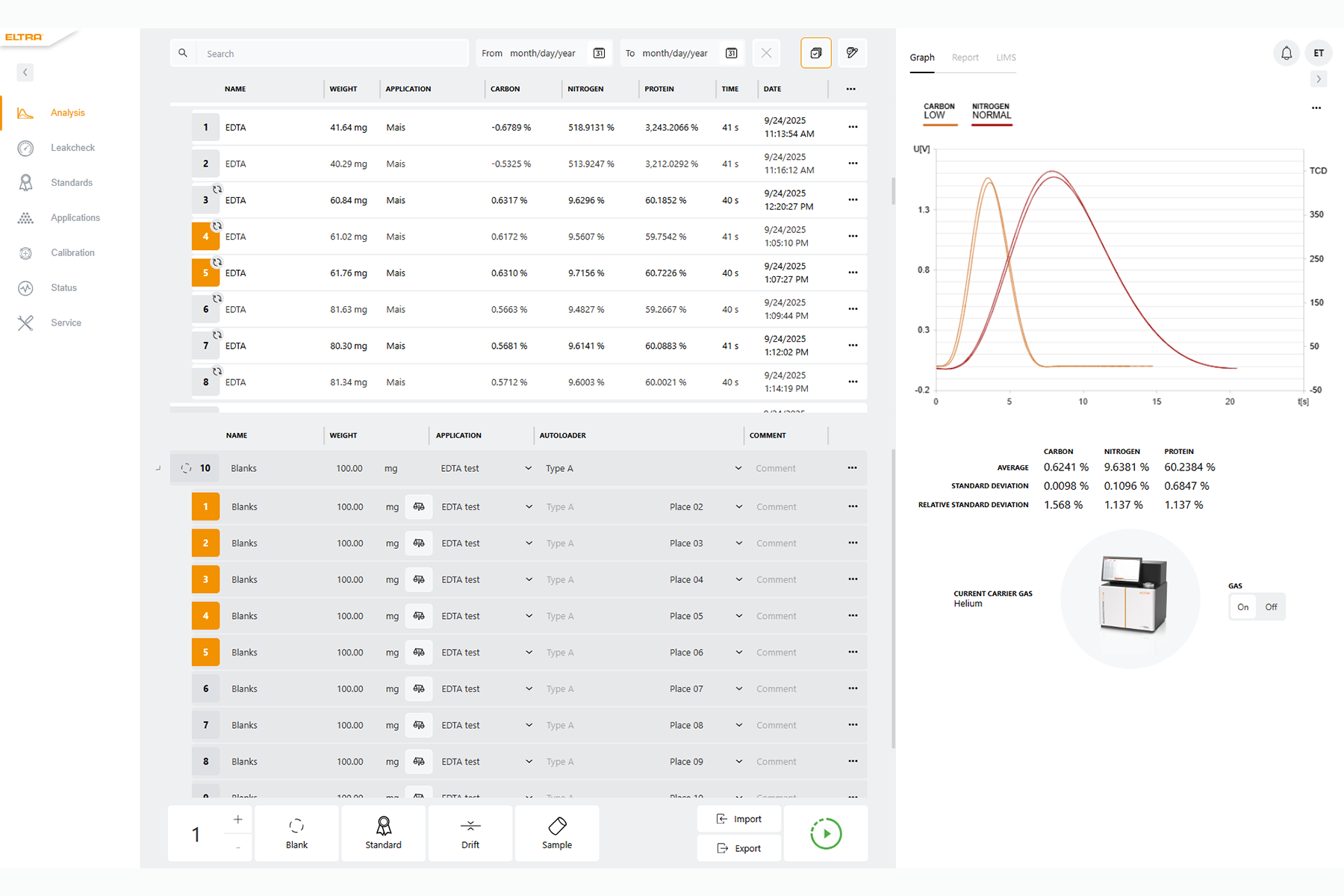

Step 1: Registration of the Sample in the Elements 4.0 Software
The sample is registered in the ELEMENTS 4.0 software. The weight is automatically transferred from the balance (step 1) – fast, safe, and error-free.
Step 2: Weighing and Application
Whether a few milligrams or up to 1 gram: the ELEMENTRAC CN-r offers the highest precision with various sample types – solid or liquid. These are simply weighed into tin foil or tin capsules and reliably analyzed.

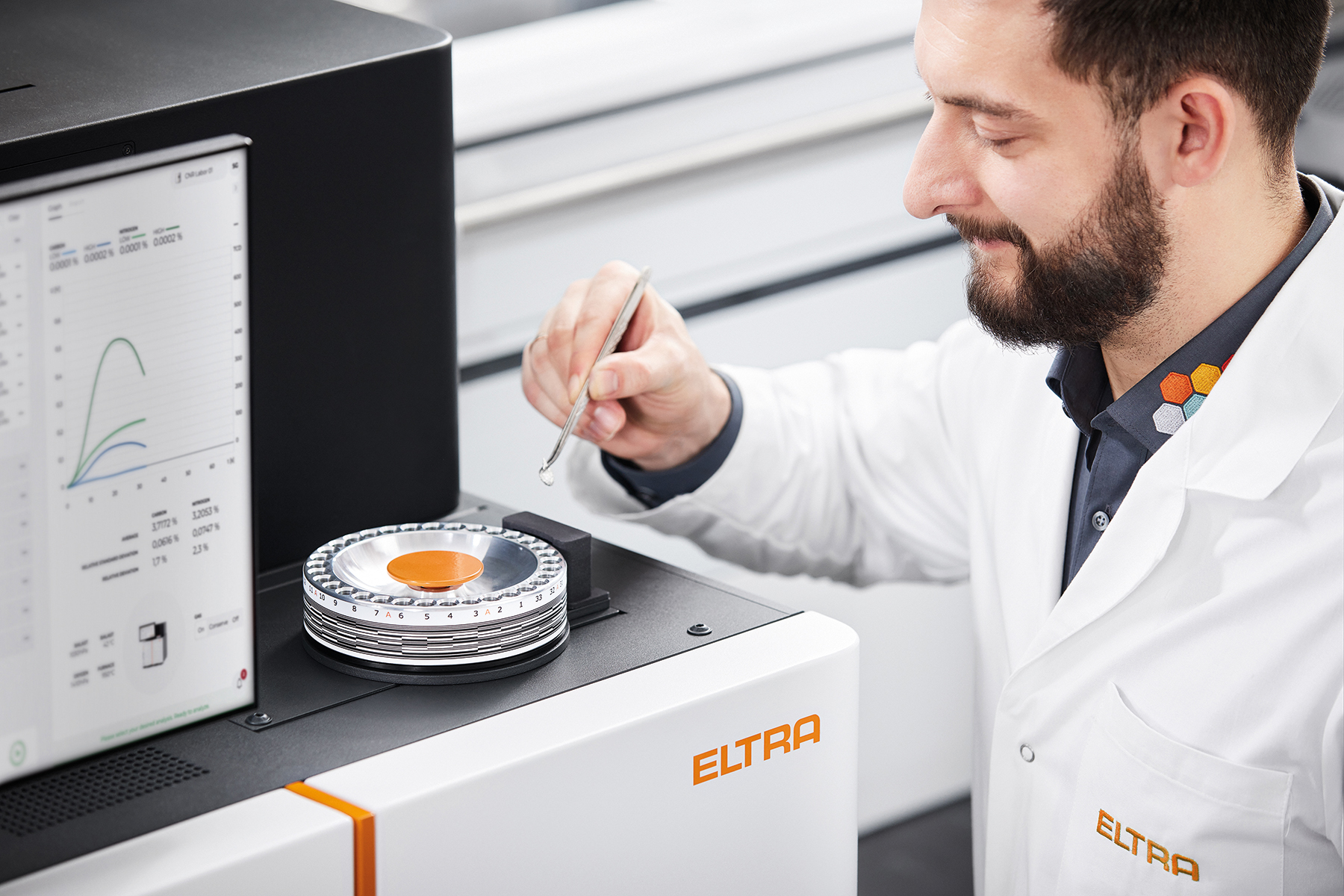

Step 3: Analysis
The samples are conveniently placed into the carousel. The CN-r automatically detects the carousel and clearly assigns all samples – ensuring a smooth, safe, and automated process.
Step 4: Data output and export
120 to 180 seconds after the analysis has started, the measured concentrations are available for export as a report or via LIMS.
Carbon / Nitrogen / Protein Analyzer ELEMENTRAC CN-r Configurations
The ELEMENTRAC CN-r can be flexibly configured:
- Nitrogen/Protein determination
- Nitrogen/Protein and Carbon determination

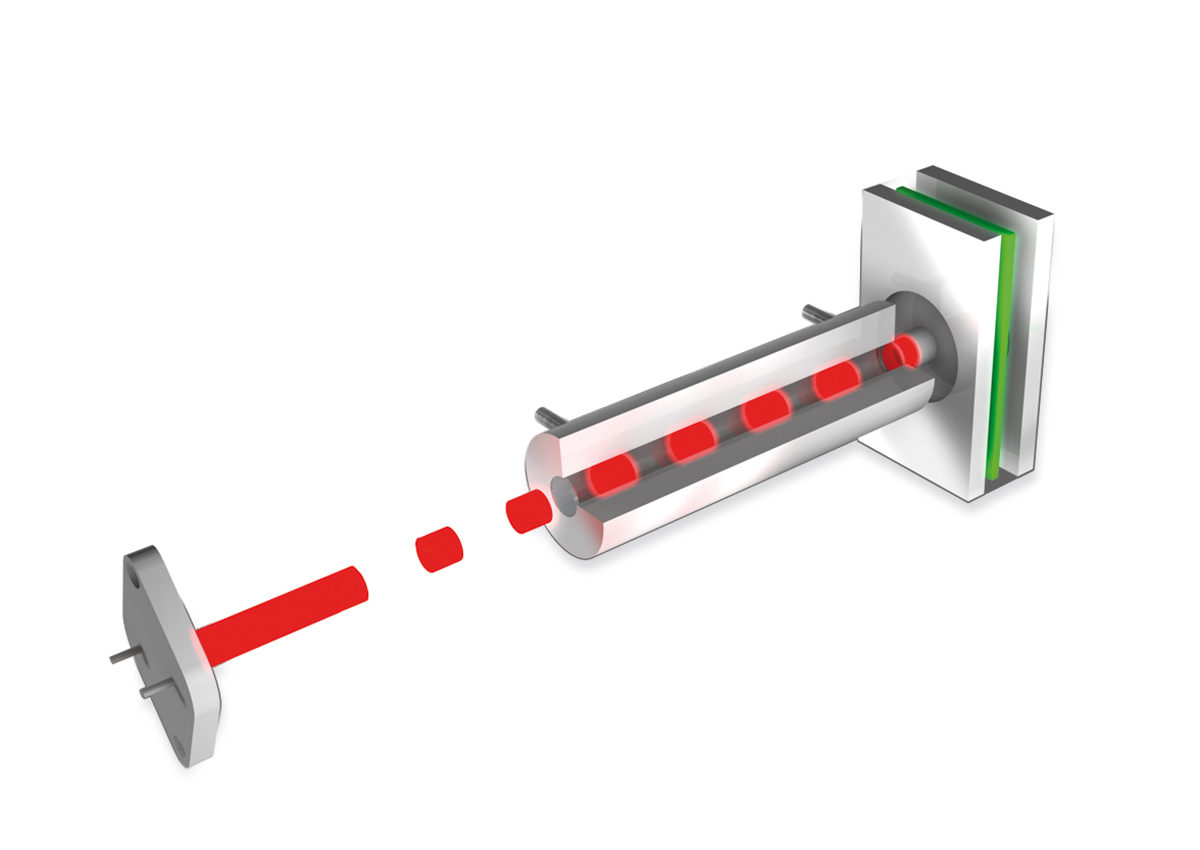

Non-dispersive infrared detectors (NDIR)

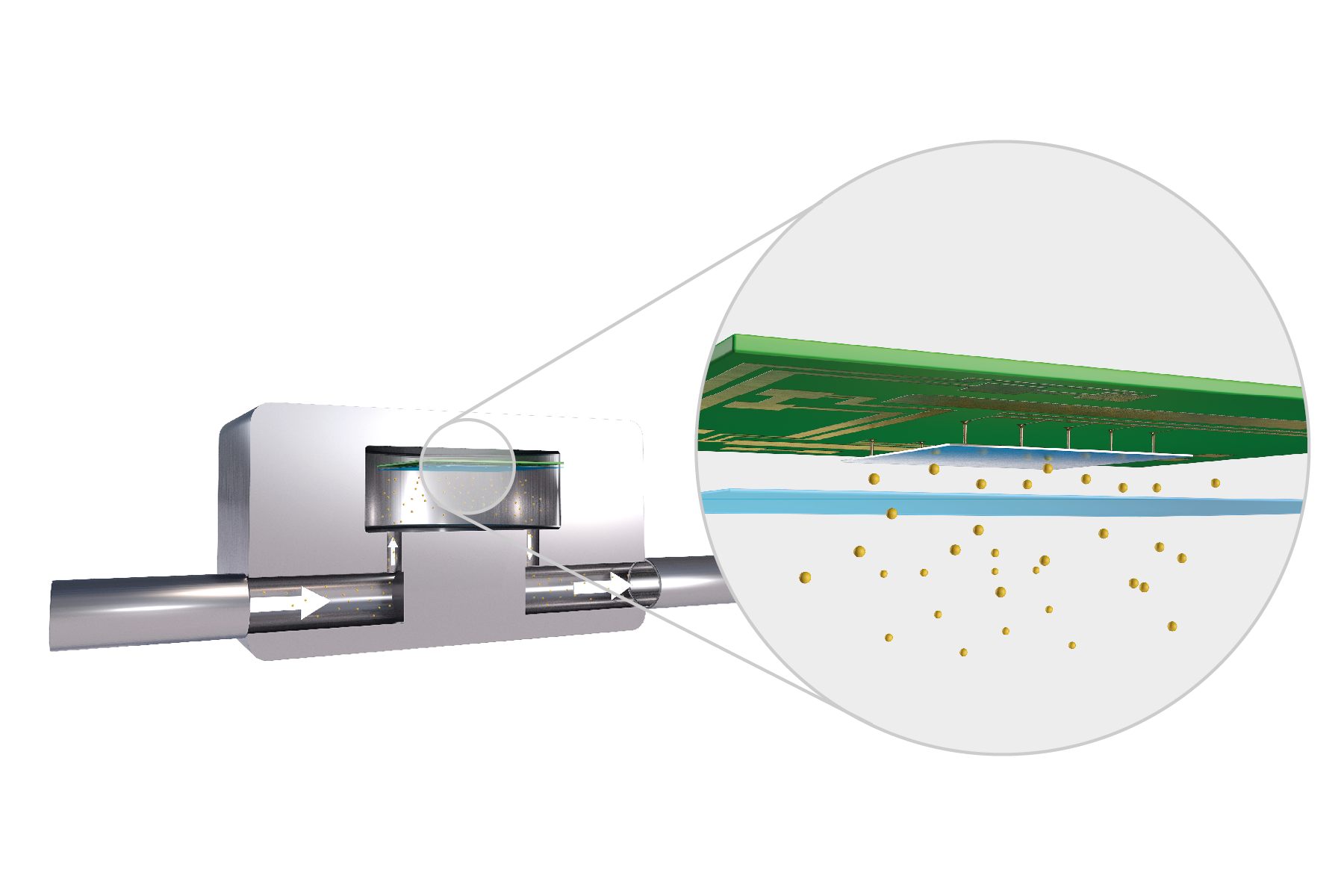

Thermal conductivity cell with high sensitivity
Carbon / Nitrogen / Protein Analyzer ELEMENTRAC CN-r
Integrated standard solutions
All chemicals required for operation are ergonomically arranged at the front and safely hidden behind a door during routine use. Maintenance is especially user-friendly: combustion and reduction tubes can be replaced without tools in just a few minutes. This well-thought-out design reduces time expenditure, increases reliability, and ensures maximum reproducibility of your analyses.

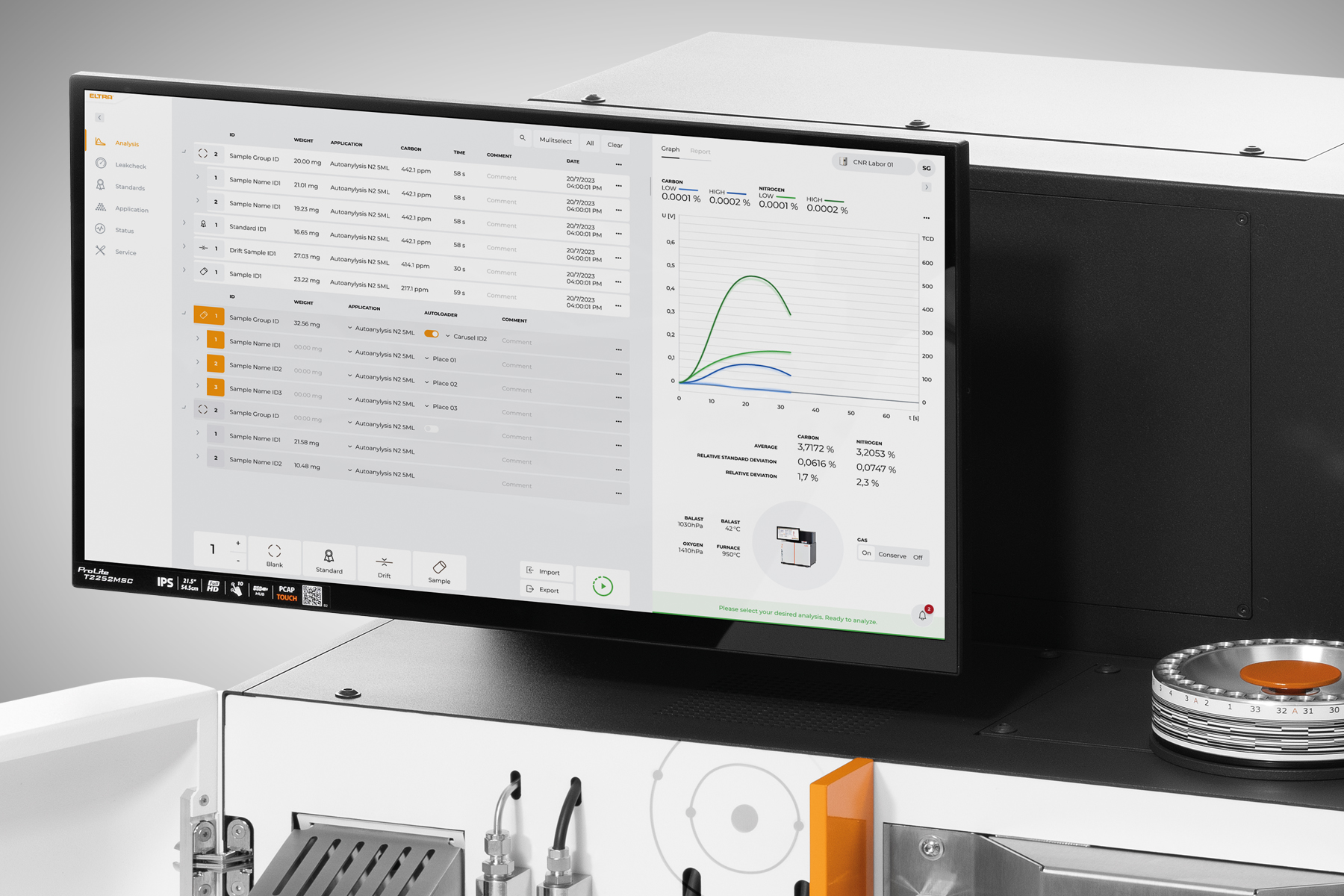

Touchscreen & Integrated PC
The ELEMENTRAC CN-r is equipped with a modern touchscreen that can be placed flexibly either directly on the device or conveniently on the desk. Thanks to the integrated PC, no additional hardware is required. The ELEMENTS 4.0 software can be intuitively operated via touchscreen – or classically with a keyboard and mouse. With the available USB ports, you can easily connect peripheral devices such as a keyboard, mouse, or a balance.
Networking & Data Access
The CN-r can be easily integrated into your network. This allows you to transfer results directly into your LIMS or access the device software from your office PC. Whether recalculations, evaluations, or entering new samples: you always have full access and can complete your tasks easily and efficiently – regardless of the device’s location.
High Performance
Analyze your samples in less than 3 minutes! Our intelligent processing allows simultaneous combustion of the current sample and analysis of the previous sample (so-called interleave analysis). Get results over 70 times faster than with the Kjeldahl method and benefit from unparalleled speed in your analysis workflow.
Effortless Maintenance
All consumables can be replaced in less than 20 minutes, keeping your system always ready for use. An optimized workflow with quick and effortless maintenance ensures smooth operation with minimal downtime.
In addition to the features already integrated in the ELEMENTRAC CN-r, additional options are available to further enhance efficiency and extend the range of applications.
IoT - Internet of things The platform for remote access to your devices
- Real-time Monitoring: Gain insight into the status of your machines at any time thanks to immediate access to important data.
- Live Notifications: Stay up to date on the status of your devices with instant notifications.
- Effortless Backup: Whether you need to back up a single device or an entire fleet, back up your data effortlessly and minimize downtime.
- Automatic Software Updates: Verder Scientific IoT keeps your device software up to date, optimizing performance and reliability.
- Access to Analyses Data: ELTRA analyzers offer remote access to analysis data. This allows you to conveniently access important data while on the move.
- Autoloader Efficiency: Get the most out of remote analysis preparation with our autoloader feature, which ensures uninterrupted operation and increased productivity for all instruments equipped with it.
Experience the power of the Verder Scientific IoT platform today and unlock the full potential of your ELTRA analyzers!
Carbon / Sulfur AnalyzerELEMENTRAC CS-i ELEMENTS Software
The comprehensive Windows-based ELEMENTS software is an essential part of all ELEMENTRAC generation elemental analyzers.
A central window (analysis and results) is the starting point from which all functionalities required for the daily routine are easily accessible. From here it is possible to group and export analyzed samples, or register and analyze new ones. The user may call up various subordinate functionalities like application settings, calibration, diagnosis, or status.

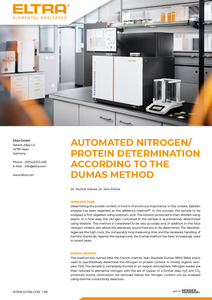

Application Notes Protein Determination in Milk with Dumas Method
The Dumas method is a valid alternative for determining protein content in milk, providing quick and accurate results without the use of harmful chemicals. Its efficiency and safety make it increasingly popular compared to the Kjeldahl method. Read our application note…
Carbon / Nitrogen / Protein Analyzer ELEMENTRAC CN-r Typical Sample Materials
The Dumas method for protein and nitrogen determination is internationally recognized and validated by leading organizations such as AOAC, AACC, ISO, DIN, AOCS, and OIV.
rice
- Determination of protein content for nutritional labeling and quality control
- Evaluation of rice by-products (bran, husks) for animal feed regarding nutrient composition
- Supporting breeding and research for improved rice varieties (higher protein content, better nutritional properties)
soil
- Soil samples to evaluate nitrogen availability for plants
- Fertilizers to determine nitrogen content and thereby fertilizer quality
Milk & Dairy Products
- Analysis of solid or liquid samples such as cheese, blue cheese, yogurt, and milk
- Determination of protein content for nutritional labeling and quality control
- The ELEMENTRAC CN-r meets or exceeds the requirements of all common international standards, such as DIN EN ISO 14891
meat & meat products
- Determination of protein content for nutritional labeling and quality control
- Verification of meat authenticity and prevention of food fraud
- Monitoring protein levels in processed meat products
coal
- Measurement of nitrogen content to assess quality
- Control of nitrogen levels in coke production
- Optimization of combustion processes and reduction of emissions
fertilizers
- Determination of nitrogen concentration to ensure fertilizer efficiency
- Quality control and compliance with agricultural standards
- Evaluation of nutrient availability for improved crop yield
grains oil seeds
- Protein determination for nutritional evaluation and feed production
- Quality assessment in oilseed processing (soy, sunflower, rapeseed, etc.)
- Supporting research on oilseed breeding and agricultural development
Carbon / Nitrogen / Protein Analyzer ELEMENTRAC CN-r Technical Data
| Measurement ranges | Nitrogen: 0.03 mg to 300 mg//Carbon: 0.02 mg to 175 mg |
|---|---|
| Typical weights | Up to 1.0 g, 0.5 g nominal |
| Analysis time | < 3 min |
| Detectors | Thermal conductivity detector (N)//NDIR (C) |
| Typical samples | Food, feed stuff, fuels (coal and coke),//environmental samples and fertilizers |
| Reagents | Magnesium perchlorate, sodium hydroxide, copper,//aluminum oxide |
| Power supply | 230 VAC ± 10 %, 50/60 Hz |
| Gas required | Oxygen (99.999% purity)//Helium (99.996% purity)//Compressed air (oil and water free) |
| Configurations | CN-r, N-r |
| Weight | 135 kg |
| Dimensions (W x H x D) | (W x H x D) 75,7 x 78,5 x 62 cm |
